VIBRO BARRIER ACOUSTIC BARRIER

VIBRO Barrier is a high-performance, mass-loaded flexible acoustic barrier engineered for superior sound isolation. Designed to minimize noise breakout from pipes, valves, fan housings, and ductwork, it is ideal for both pipe and duct lagging applications across commercial, industrial, and residential environments. Also known as a Mass Loaded Vinyl (MLV) Barrier, this limp-mass material effectively blocks unwanted noise and reduces sound transmission without compromising space. It is purpose-built to meet the acoustic demands of domestic, commercial, industrial, and automotive sectors. The dense core mass layer reflects and absorbs sound transmission through walls, ceilings, and floors particularly effective against critical frequencies generated by mechanical equipment, engines, and electronic audio systems. Prevents resonance issues commonly associated with thin, rigid materials, ensuring consistent acoustic performance. The foil-faced variant enhances fire-retardant properties, making it suitable for applications with elevated safety requirements. Easily cut and fabricated around pipe penetrations, ducting, and cabling. Its high tensile strength and tear resistance allow for long vertical installations, even in space-constrained environments.

VIBRO BASE INERTIA VRCB

Model VRIB – VIBRO BASE inertia base frames, once filled with concrete, fully comply with all inertia base specifications. When paired with appropriate VIBRO ISOLATORS, they deliver superior performance in equipment isolation, structural support, secure anchorage, and effective control of vibration amplitude. These frames feature a distinctive structural configuration that combines perimeter channels, isolator mounting brackets, reinforcing steel rods, anchor bolts, and concrete fill into a unified load transfer system. This design strategically employs steel under tension and concrete under compression, achieving exceptional strength and rigidity with minimal steel usage. Inertia bases constructed with VIBRO BASE frames demonstrate greater stiffness and durability compared to conventional designs that rely on heavier steel components.

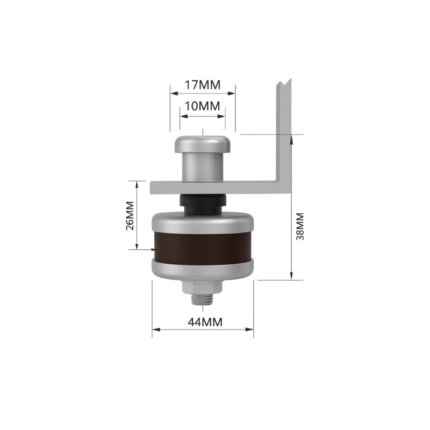

VIBRO CLIP RESILIENT SOUND ISOLATION CLIP

VIBRO CLIP is a resilient sound isolation clip used to isolate acoustic floating wall & ceiling from main structure walls and ceilings. VIBRO CLIP creates a high STC (sound transmission classification) rating for your wall or ceiling assembly and offers an economical method to “float” your walls or ceilings. These isolation clips are used for vibration control of structure-borne noise and help build assemblies that will more effectively block airborne noise transmission To complete an envelope, secondary walls must be introduced with the same consideration given to mass and air gap as covered in the floor discussion. The best approach is resting these walls on the perimeter of the floating floor so the floor isolation system serves the walls as well. If this is not possible, the second choice is supporting the isolated wall on the structural slab with continuous rubber strip. With its durable design, ease of installation, and proven acoustic benefits, VIBRO CLIP provides an advanced, reliable, and cost-effective solution for modern soundproofing needs.

VIBRO CONNECTORS VRSF

VRSF flexible expansion joints commonly referred to as rubber joints are engineered to absorb movement, isolate vibration, and reduce noise in piping systems across a wide range of industrial applications. These joints are widely utilized in water supply and treatment, electrical utilities, chemical processing, and marine mooring systems due to their robust performance and versatile material compatibility. The rubber body of each expansion joint is constructed using a multi-layered vulcanization process:
  • Inner Layer: Tailored to suit the conveyed medium, using rubber types such as NR, SBR, IIR, NBR, EPDM, CR, FKM, etc., depending on chemical and thermal requirements
  • Reinforcement Layer: Made of high-strength nylon cord fabric to ensure pressure containment and structural integrity
  • Outer Layer: Composed of aging-resistant polar rubber for long-term durability in exposed or corrosive environments
To prevent natural shrinkage, premature aging, and cracking during extended service life, embedded steel wire reinforcements are incorporated for added structural protection and dimensional stability.

VIBRO CONNECTORS VRTF

VRTF double sphere rubber expansion joint is a high-performance flexible connector designed to absorb vibration, reduce noise, and accommodate multi-directional movement in piping systems. Compared to single sphere rubber joints, the double sphere configuration offers an extended installation length, effectively addressing limitations associated with short-length rubber connectors. This makes it particularly suitable for applications requiring greater flexibility and displacement absorption. The joint comprises a dual-sphere rubber body and flanged end connections. The rubber element is formulated for softness and elasticity, allowing it to dampen dynamic forces and compensate for thermal expansion and contraction caused by temperature fluctuations. However, it is essential that the joint is installed within its rated movement limits to ensure safe and reliable operation.

VIBRO CONNECTORS VRTU

VRTU threaded flexible connectors is a high-performance flexible connector designed to accommodate movement, reduce vibration, and isolate noise in pipeline systems. Engineered for durability and versatility, it offers excellent elasticity, airtight sealing, resistance to a wide range of media, and robust weatherproofing—making it suitable for demanding industrial and commercial applications. Constructed using a vulcanized double-ball rubber body and a movable metal joint, the expansion joint comprises three key layers:
  • Inner Layer: Heat-resistant rubber for thermal stability and chemical resilience
  • Reinforcement Layer: High-strength cotton cord fabric for structural integrity and pressure resistance
  • Outer Layer: Aging-resistant rubber for long-term durability in exposed environments
End Connection Material:
  • Forged or cast steel (available in round or square profiles)
  • Surface finish: Galvanized for corrosion protection and extended service life

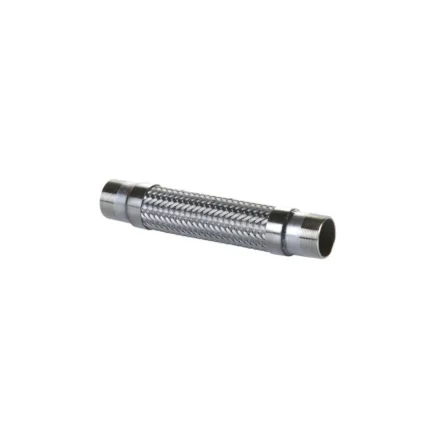

VIBRO FLEX VBS

VIBRO FLEX Braided Stainless Steel Flexible Connectors are designed to effectively absorb and relieve stresses that occur due to piping misalignment, thermal expansion, or minor installation inaccuracies. Each connector consists of a corrugated stainless-steel tube that provides flexibility, while the surrounding stainless-steel wire braid offers reinforcement, strength, and pressure resistance. By combining these features, the connectors not only enhance the durability of the piping system but also help in reducing transmission of mechanical noise and vibration. This makes them highly effective when installed in systems connected to pumps, compressors, and other types of pulsating or rotating equipment, where vibration isolation and noise control are critical for maintaining system performance and extending equipment life.

VIBRO FLEX VSEJ

VIBRO FLEX St.Steel expansion joints are primarily designed to absorb dimensional changes in pipelines caused by thermal movement. They are made of bellows formed from thin-walled stainless-steel tubing. Compared to other methods of accommodating pipe movement, such as pipe loops or slip-type joints, bellows expansion joints are more efficient. Pipe loops occupy excessive space, while slip joints demand frequent maintenance. Moreover, both loops and slip joints can only accommodate movement along the pipe axis. In contrast, bellows expansion joints are compact, maintenance-free, and capable of absorbing multiple types of movement. VIBRO FLEX bellows expansion joints are offered with flanged, welded, grooved, or threaded ends. Internal liners are available to protect the bellows’ inner surface from erosion and to reduce vibrations caused by fluid flow. Additional options include tie rods for movement control and shrouds that shield the bellows from damage in buried installations. For proper anchoring and guiding of pipelines with expansion joints and to avoid joint extension or buckling due to pressure thrusts consult Akinco for expert guidance.

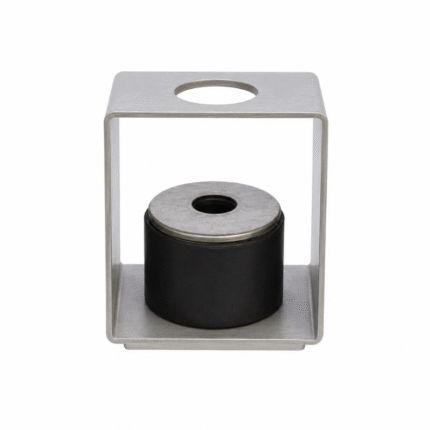

VIBRO HANGER NEOPRENE

VIBRO HANGER Model VCHN Vibration Isolation Hangers are specifically engineered to effectively mitigate the transmission of vibration and structure-borne noise generated by suspended light mechanical systems, including piping networks, ductwork, and associated equipment. These hangers play a critical role in maintaining acoustic comfort and structural integrity by isolating dynamic loads and preventing vibration propagation through building elements. Each Model VCHN Hanger integrates a color-coded elastomer insert operating in shear, paired with a high-strength steel load washer, all securely assembled into a precision-formed or welded steel hanger bracket. The use of elastomer in a shear-loaded configuration, rather than the conventional compression mode, provides significant technical advantages. Shear loading increases the permissible deflection range of the elastomer, thereby enhancing strain capacity while simultaneously minimizing material fatigue and long-term degradation. This results in improved service life and consistent vibration isolation performance over extended operational periods. The color-coded elastomer system ensures accurate load identification and selection, allowing engineers to match hanger capacity to the specific weight and vibration characteristics of the suspended system. Furthermore, the combination of stamped or welded steel bracket construction ensures both mechanical robustness and flexibility of application across a wide range of installation environments. From a cost-performance perspective, the VCHN Hanger represents a highly economical vibration control solution. Its optimized elastomer utilization, reduced wear rate, and simplified installation requirements contribute to lower lifecycle costs while delivering superior vibration attenuation compared to traditional compression-based isolation hangers. In summary, the Model VCHN Hangers embody a unique and efficient application of elastomeric technology in vibration isolation systems—providing durability, reliability, and acoustic performance in HVAC, piping, and ductwork installations.

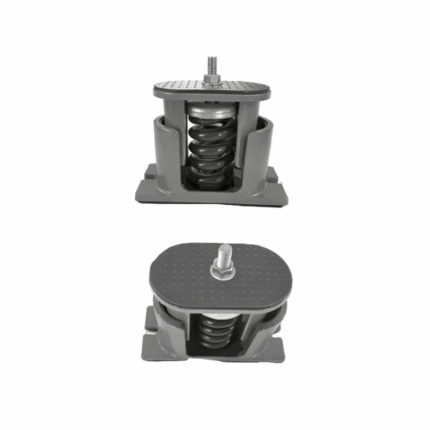

VIBRO ISOLATOR VRSHI

VRSIH housed spring isolators are high-performance vibration control units designed to deliver substantial deflection while maintaining structural restraint. Each unit incorporates large-diameter, laterally stable steel springs housed within a fabricated steel enclosure to prevent excessive movement and ensure safe operation under dynamic, seismic, or wind-induced conditions. The spring assembly is mounted between precision-engineered top and bottom load plates. The upper plate includes integrated leveling bolts, locknuts, and washers for accurate equipment alignment and secure attachment. The bottom plate features a non-skid neoprene isolation pad and bolt provisions for anchoring to the supporting structure.

VIBRO ISOLATOR VRSIF

These high-deflection, free-standing spring isolators feature large-diameter, laterally stable steel coils that are unhoused and engineered for optimal performance. Each spring assembly is integrated into a robust upper load plate with a precision leveling mechanism to ensure consistent load distribution and ease of installation.
  • Light-Duty Configuration: For lower load capacities, the isolators are equipped with molded neoprene bottom load plates, offering effective vibration damping and acoustic isolation.
  • Heavy-Duty Configuration: For higher load applications, the steel springs are securely welded to a heavy-gauge steel bottom load plate. A neoprene isolation pad is bonded to this plate to enhance vibration attenuation and reduce structure-borne noise.
Technical Features and Performance Criteria:
    • Spring Geometry: The ratio of spring diameter to compressed height under rated load is maintained at a minimum of 0.8, ensuring lateral stability and consistent performance.
    • Corrosion Protection: Springs are finished with an epoxy powder coating, tested to withstand up to 1000 hours of salt spray exposure for enhanced durability in harsh environments.
    • Acoustic Isolation: A neoprene friction pad is incorporated to act as a sound break, effectively minimizing the transmission of high-frequency vibrations.
    • Vibration Isolation Efficiency: The system achieves a vibration isolation efficiency exceeding 95%, making it suitable for sensitive equipment and noise-critical installations.
    • Structural Integration: Bottom plates are pre-engineered with bolt provisions to facilitate secure anchoring to the supporting structure.
    • Stability Assurance: Lateral stiffness of the spring assembly is designed to exceed 1.0 times the rated vertical stiffness, ensuring reliable performance under dynamic loads.
    • Overload Capacity: Each spring unit is rated to accommodate a minimum of 50% overload beyond its nominal load capacity. Springs are structurally safe even at solid height compression.

VIBRO ISOLATOR VRSIR

VRSIR Restrained Spring isolators are designed to deliver high-deflection vibration isolation while incorporating structural containment features that prevent excessive movement under dynamic or seismic conditions. These units utilize large-diameter, laterally stable steel springs housed within a rigid frame that limits vertical and horizontal displacement, ensuring safe and predictable performance in demanding environments. Each spring assembly is integrated into a heavy-duty upper load plate with a built-in leveling mechanism, allowing for precise load distribution and simplified installation. The restrained design ensures that the spring remains securely seated throughout its operating range, even under transient or overload conditions.
