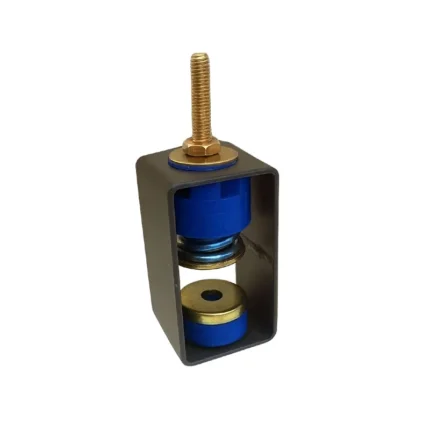

VIBRO HANGER NEOPRENE
VIBRO HANGER Model VCHN Vibration Isolation Hangers are specifically engineered to effectively mitigate the transmission of vibration and structure-borne noise generated by suspended light mechanical systems, including piping networks, ductwork, and associated equipment. These hangers play a critical role in maintaining acoustic comfort and structural integrity by isolating dynamic loads and preventing vibration propagation through building elements.
Each Model VCHN Hanger integrates a color-coded elastomer insert operating in shear, paired with a high-strength steel load washer, all securely assembled into a precision-formed or welded steel hanger bracket. The use of elastomer in a shear-loaded configuration, rather than the conventional compression mode, provides significant technical advantages. Shear loading increases the permissible deflection range of the elastomer, thereby enhancing strain capacity while simultaneously minimizing material fatigue and long-term degradation. This results in improved service life and consistent vibration isolation performance over extended operational periods.
The color-coded elastomer system ensures accurate load identification and selection, allowing engineers to match hanger capacity to the specific weight and vibration characteristics of the suspended system. Furthermore, the combination of stamped or welded steel bracket construction ensures both mechanical robustness and flexibility of application across a wide range of installation environments.
From a cost-performance perspective, the VCHN Hanger represents a highly economical vibration control solution. Its optimized elastomer utilization, reduced wear rate, and simplified installation requirements contribute to lower lifecycle costs while delivering superior vibration attenuation compared to traditional compression-based isolation hangers.
In summary, the Model VCHN Hangers embody a unique and efficient application of elastomeric technology in vibration isolation systems—providing durability, reliability, and acoustic performance in HVAC, piping, and ductwork installations.

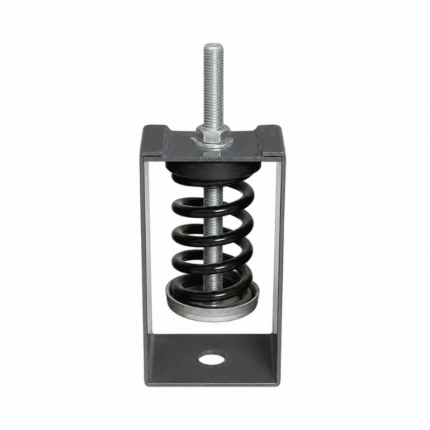

VIBRO VCHS SPRING HANGER
VIBRO spring hangers are composed of free-standing, laterally stable steel springs combined with a molded elastomer element, all housed within a stamped and welded steel bracket. The brackets feature a durable powder-coated finish and include color-coded springs for easy identification. To ensure stability, each spring provides a lateral stiffness equal to or greater than its rated vertical stiffness. The brackets are engineered to withstand overloads up to 1.5 times without damage. These hangers are manufactured with deflection ratings starting from 1″ (25 mm) and load capacities ranging between 3 and 1500 kg.
A dedicated fan coil vibration isolator has been designed to meet installation needs. This isolator offers high damping, a low natural frequency, easy installation, and cost efficiency, making it especially suitable for environments where comfort and quiet operation are essential. The VIBRO HANGER suspension-type spring isolator is widely used in fan coil units and other small equipment. In central air-conditioning projects, using these hangers improves unit performance, extends service life, and minimizes noise and vibration disturbances to the surrounding areas.
For ceiling-mounted applications, these products are used to minimize vibration transmission from mechanical equipment, HVAC piping, air ducts, and suspended devices that generate high-frequency vibrations. Effective vibration and sound insulation are especially crucial in mechanical rooms, recording studios, and broadcasting facilities, preventing noise and vibration transfer to structural elements such as ceilings and roofs.
A dedicated fan coil vibration isolator has been designed to meet installation needs. This isolator offers high damping, a low natural frequency, easy installation, and cost efficiency, making it especially suitable for environments where comfort and quiet operation are essential. The VIBRO HANGER suspension-type spring isolator is widely used in fan coil units and other small equipment. In central air-conditioning projects, using these hangers improves unit performance, extends service life, and minimizes noise and vibration disturbances to the surrounding areas.

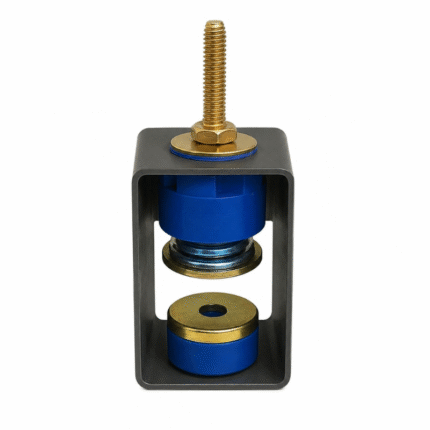

VIBRO VCHSN RUBBER HANGER
VIBRO HANGER spring hangers are composed of free-standing, laterally stable steel springs combined with a molded elastomer element, all housed within a stamped and welded steel bracket. The brackets feature a durable powder-coated finish and include color-coded springs for easy identification. To ensure stability, each spring provides a lateral stiffness equal to or greater than its rated vertical stiffness. The brackets are engineered to withstand overloads up to 1.5 times without damage. These hangers are manufactured with deflection ratings starting from 1″ (25 mm) and load capacities ranging between 3 and 80 kg.
For ceiling-mounted applications, these products are used to minimize vibration transmission from mechanical equipment, HVAC piping, air ducts, and suspended devices that generate high-frequency vibrations. Effective vibration and sound insulation are especially crucial in mechanical rooms, recording studios, and broadcasting facilities, preventing noise and vibration transfer to structural elements such as ceilings and roofs.
