Description

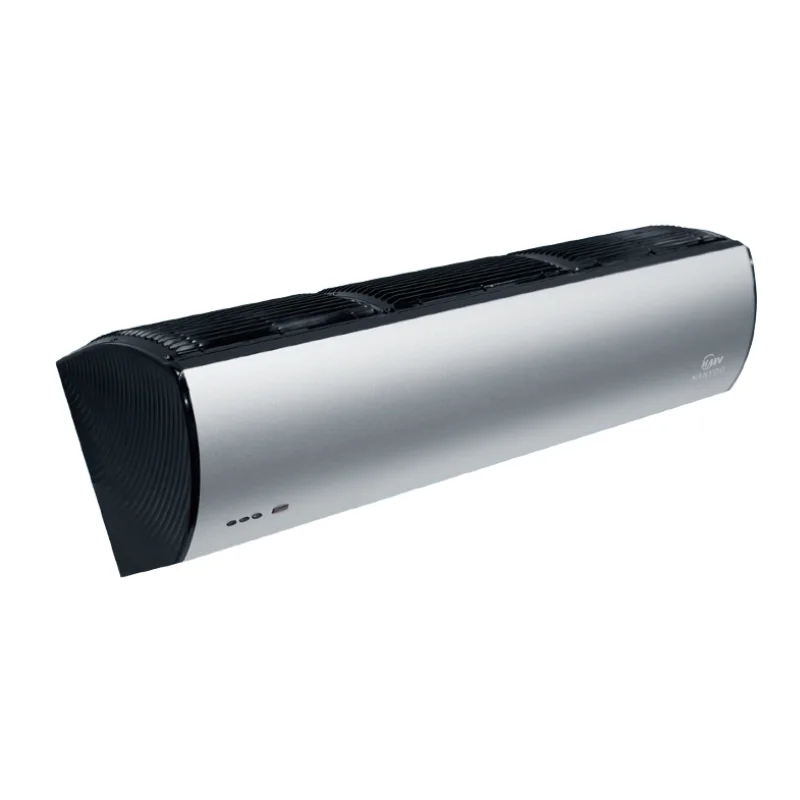

The air curtains are available in multiple series (H3, H5, H7, X‑Series, G‑Series, N‑Series, and EC Motor variants), offering options for different installation heights, airflow capacities, and control configurations
- High‑Efficiency Motor Technology – Self‑manufactured motors designed for strong airflow, low noise, and long service life. “High efficiency motor: Adopting self-made motor, powerful, low noise, more reliable.”
- Optimised Air Duct & Wheel Design – Ensures smooth, even airflow with reduced velocity decay for improved air‑curtain effectiveness. “Improved air duct design… bringing powerful, smooth and even air flow.”
- Multiple Control Options – Manual key control, remote control, and optional magnetic door switch for automatic operation. “Multi-control ways… standard two speeds, three speeds for option.”
- Energy‑Saving EC Motor Options – Stepless speed regulation via 0–10V, PWM, or 4–20mA signals, with RS485 network capability. “Stepless fan speed regulation… external current 4-20mA, PWM pulse signal or voltage 0-10V.”
- Low Noise & Low Vibration Operation – Designed with anti‑vibration components and optimised airflow paths. “Low vibration, low noise and continuous connection.”
- Flexible Voltage Options – Models available in 110–240V, 50/60Hz for global compatibility.
- Optional UV‑Sterilisation Models – High‑purity quartz UV lamps for air disinfection and microbial control. “High-power ozone-free type UV lamp… can kill all kinds of bacteria, viruses and microorganisms.”
- Casing: Metal or aluminium panel depending on model series
- Impeller: Cross‑flow wheel (100–150 mm diameter depending on model)
- Motor: High‑efficiency AC or EC motor
- Controls: Manual switch, remote control, optional magnetic door switch
- Finish Options: White, black, aluminium, or mixed panel combinations (model dependent)
Representative values extracted from the catalogue; varies by model size)
- Air Velocity: 10–12 m/s “Air Velocity (m/s): 10–11 / 11–12 depending on model.”
- Air Volume: 1,550 – 3,960 m³/h “Air Volume (m³/h): 1550 / 1720 / 2130 / 2650 / 3200 / 3550 / 3960.”
- Noise Level: ≤ 42–52 dB (model dependent) “Noise (dB): ≤45 / ≤48 / ≤50 / ≤52.”
- Installation Height: 2.3–3.5 m “The Installation Height (m): 2.3–3 / 3–3.5 depending on model.”
Electrical Specifications
- Voltage: 110–240V
- Frequency: 50/60Hz
- Input Power: 75–320 W (depending on model and size) “Input Power (W): 75 / 83 / 95 / 113 / 150 / 180 / 320.”
Available Series
- H3 Series: Compact cross‑flow design with optional EC motor
- H5 Series: Aluminium panel, premium finish
- H7 Series: Hexagonal punched panel, high rigidity
- T3 Series: High‑end aluminium design with enhanced airflow
- X Series: Aesthetic flow panel with strong airflow performance
- G Series: Heavy‑duty wheel design for higher mounting heights
- N Series: Optional UV‑sterilisation air curtain for hygiene‑critical areas
Suitable for:
- Retail shops
- Restaurants and cafés
- Office buildings
- Hospitals and clinics
- Shopping centres
- Residential entrances
- Public facilities
- Cold‑storage and conditioned spaces
“Ventilator is widely used in families and public places.”
Compliance & Certifications
- CE
- CB
- ISO9001
- TÜV Rheinland
- SGS
- ROHS
- UL (model dependent)
“NANYOO has earned national CCC, and international certificates including CE, CB, Imetro, Norm, Rohs, UL and G Mark.”
