VIBROLAG PIPE ACOUSTIC LAGGING

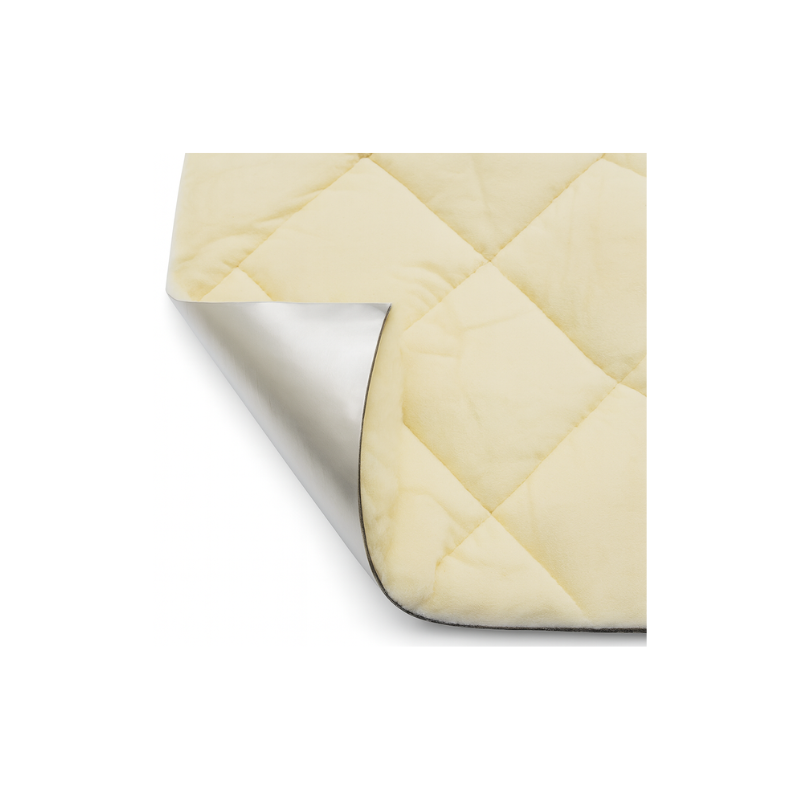

VIBROLAG Pipe Acoustic Lagging is engineered to minimize airborne noise breakout from ductwork and pipework systems. The product comprises a mass‑loaded limp polymer barrier bonded to a resilient decoupling layer of fire‑resistant fiberglass. This composite construction delivers effective acoustic isolation and ensures compliance with relevant Building Regulations and acoustic performance criteria specified by consultants and contractors.

Category:
Description

Description

  • Dual Functionality: Acts simultaneously as a noise barrier and absorber.
  • Mass Layer: High‑density, flexible polymer barrier providing superior sound attenuation.
  • Decoupling Layer: Fire‑resistant fiberglass designed to interrupt vibration transmission between substrate and barrier.
  • External Wrap: Flexible vinyl outer layer optimised for acoustic performance.
  • Foil Facing: Fire‑resistant finish offering a durable surface for jointing adjacent sheets.
  • Supply Format: Standard roll size – 1 m x 4 m.
  • Excellent acoustic performance
  • High flexibility for rapid installation
  • Very low VOC emissions
  • Durable, long‑term performance
  • Cost‑effective solution
  • Service Temperature Range: –20°C to +120°C
  • Commercial offices
  • Retail centers and shopping malls
  • Healthcare facilities
  • Hotels and hospitality buildings
  • Residential apartments and mixed‑use developments
  • Multi‑story housing units
  • Occupied spaces requiring acoustic control

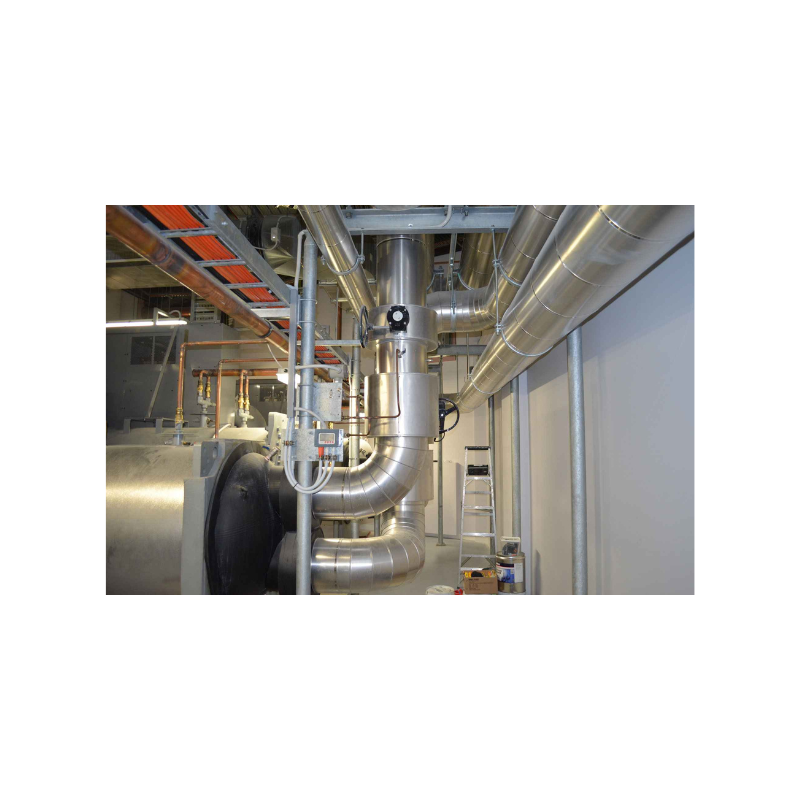

  • Pipework and ductwork requiring breakout noise reduction
  • Weighted Sound Reduction Index: Rw + Ctr = 27 dB
  • Tested in accordance with ISO 717‑1:2020
  • Drainage and wastewater pipework – breakout noise reduction
  • Ducting and ventilation systems – breakout noise reduction
  • Walls and ceilings – improvement of overall STC rating
  • Equipment and machinery – wrap‑around treatment to reduce breakout noise

Installation must be carried out strictly in accordance with VIBROLAG installation instructions to ensure optimal acoustic and fire performance.
