VIBRO PADS VRWP

VRWP Isolation Pads are precision-moulded vibration control elements fabricated from durable neoprene elastomer, offering consistent performance in moderate-load applications. With a nominal hardness of 50 Shore A, each pad is engineered to support compressive loads up to 60 psi 4.0 kg/cm² and deliver static deflection of approximately 20% of its original thickness equating to 3.8 mm under rated conditions.

For enhanced deflection, multiple layers may be stacked using interleaved steel shims, allowing tailored isolation performance based on site requirements. The neoprene compound is formulated for long-term resilience, exhibiting strong resistance to oil, water, and environmental degradation, while remaining within the safe stress limits of the material.

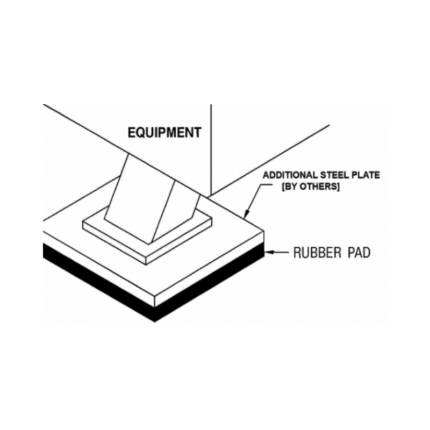

Pads are supplied in 457 mm x 457 mm x 19 mm sheets, pre-scored into 51 mm x 51 mm segments for easy field customization. Designed to function in shear, VRWP pads effectively dampen airborne noise, mechanical shock, and high-frequency vibration from equipment installed on grade or structural slabs in non-critical zones.

Recommended for use with machinery operating at speeds of 3600 rpm or higher, these pads should not be subjected to loads exceeding 4.0 kg/cm². Under impact or shock conditions, the allowable load should be reduced by 50% to maintain performance integrity.

Category:
Description

Description

  • Shear-type neoprene elastomer pads
  • Resistant to oil, water, and corrosion
  • Supplied in 457 mm x 457 mm x 19 mm sheets, pre-scored into 51 mm x 51 mm
  • Load range: 0.7–4.2 kg/cm²
  • Static deflection capacity: up to 3.8 mm
  • HVAC systems (air conditioners, chillers, air handling units).
  • Rotating machinery (motors, pumps, generators, fans).
  • Light to medium-duty industrial and process equipment.
  • Machine shop equipment and general-purpose machinery
  • Maximum load capacity: 75 – 616 Kgs
  • Rated static deflection: 1 – 3.75mm
  • Maximum static deflection. 1 – 3.75mm
  • True elastomer-in-shear loading for reliable isolation.

SIZE

DIMENSIONS

[MM]

MAX

DEFL.

LOAD RANGE

[KG]



LENGTH

WIDTH

HEIGHT

[MM]

2” 80 DURO

50.8

50.8

19.05

3.75

75 – 108

4” 80 DURO

101.6

101.6

19.05

3.75

150 – 216

6” 80 DURO

152.4

152.4

19.05

3.75

225 – 290

8” 80 DURO

203.2

203.2

19.05

3.75

300 – 432

18” 80 DURO

457.0

457.0

19.05

3.75

6075 – 8078
